CASE STUDY ● FOX LAKE BUILDERS

LETTERED STREETS

DADU

CUSTOM DADU ● BELLINGHAM, WASHINGTON ● PASSIVE HOUSE PERFORMANCE


0.4

Air Changes / Hour Our best result to date

ACH50


R-30

WALL ASSEMBLY

Effective R-Value 3.5” Mineral Wool + Z-Girt


R-63

Effective R-Value 14” Truss Attic & Roof Assembly

ROOF ASSEMBLY


$600

PER SQ FT

Finished Cost High-End Finishes Throughout

PROJECT OVERVIEW

Location
Lettered Streets Neighborhood, Bellingham, WA
Project Type
High-Performance DADU — New Construction
Architect
Bundle Design Studio
Builder
Fox Lake Builders
Certification
N/A - Passive House Standards
Envelope
3.5" Mineral Wool + Fiberglass Z-Girt Rainscreen
Air Barrier
Blueskin VP100 WRB, All Penetrations Taped & Sealed
Windows
Vetta Tilt-and-Turn — Triple Pane, Wood Interior
Siding
Metal Standing Seam Cladding — Full Black
Roofing
Metal Standing Seam
Flooring
Wide-Plank White Oak (Upper) · Polished Concrete (Main)
HVAC
Mini-Split Heat Pump System
Cost
$600 / Sq Ft — High-End Finishes
Performance
ACH50: 0.4 · Wall R-30 · Ceiling R-63
Our Best Performer Yet

CUSTOM DADU BUILDER - BELLINGHAM, WA

What a High-Performance DADU Actually Looks Like

This project in Bellingham's Lettered Streets neighborhood is one of the highest-performing DADUs Fox Lake Builders has completed in Whatcom County. Designed by Bundle Design Studio and built to passive house standards, it demonstrates what's achievable when building science and high-end custom construction are treated as the same project — not competing priorities.

The exterior makes no compromises. All-black standing-seam metal cladding, a warm wood entry canopy, and Vetta triple-pane tilt-and-turn windows create a home that reads as intentionally designed from the street. Inside, polished concrete floors, wide-plank white oak, cherry cabinetry, and terrazzo tile reflect the same standard of craft — the kind of finishes Bellingham homeowners typically have to leave the county to find.

The building envelope is where this DADU earns its performance numbers. 3.5 inches of mineral wool continuous insulation, a fiberglass z-girt rainscreen, and Blueskin VP100 air barrier — with every single penetration taped and sealed — produce an ACH50 of 0.4. For context, standard new construction in Washington State lands around 3–5 ACH50. The result is a home that stays quiet, comfortable, and cheap to heat and cool year-round.

01 ● EXTERIOR

Custom Home Construction That Holds Up at the Street.

BELLINGHAM, WA ● DADU NEW CONSTRUCTION

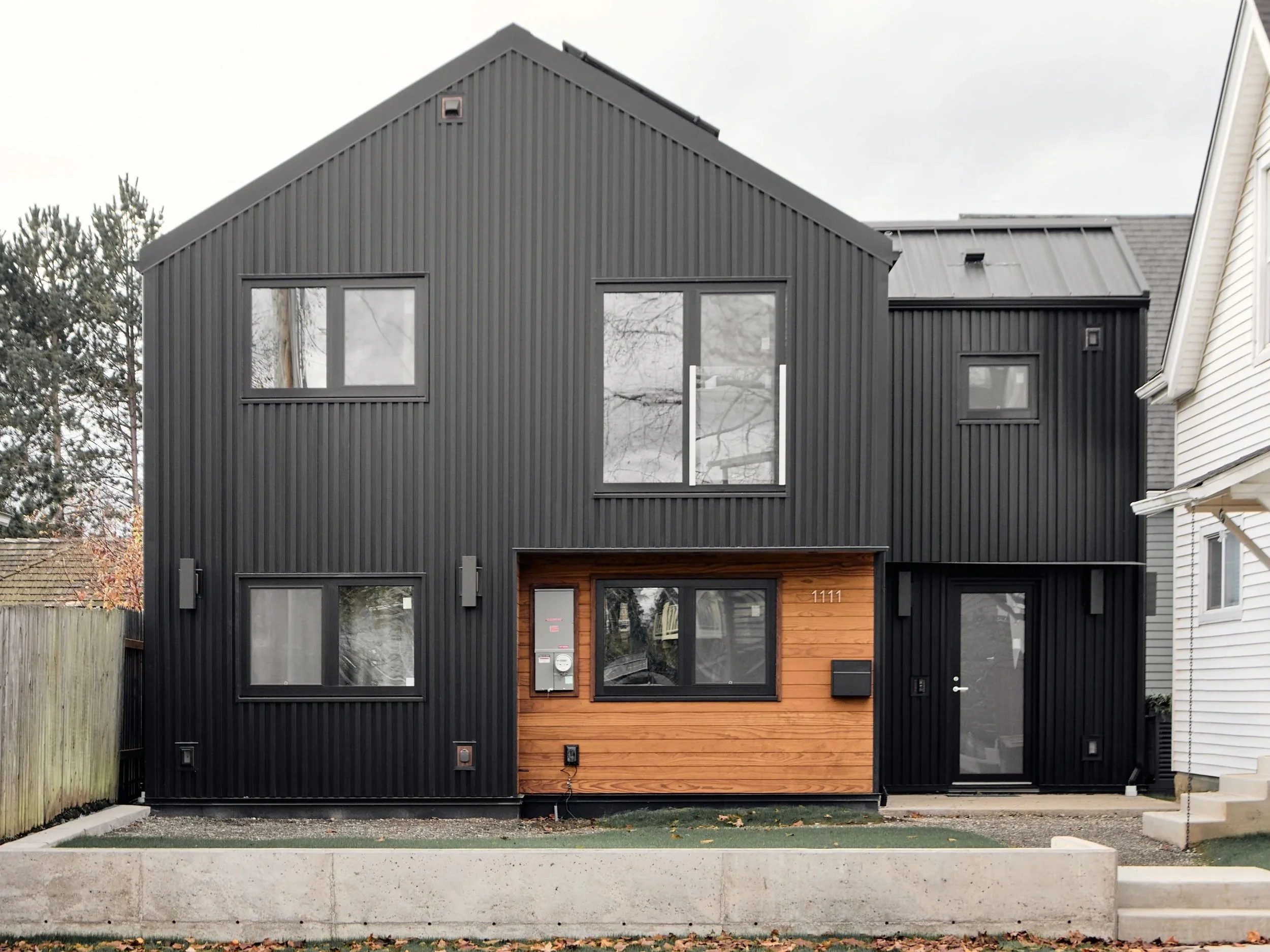

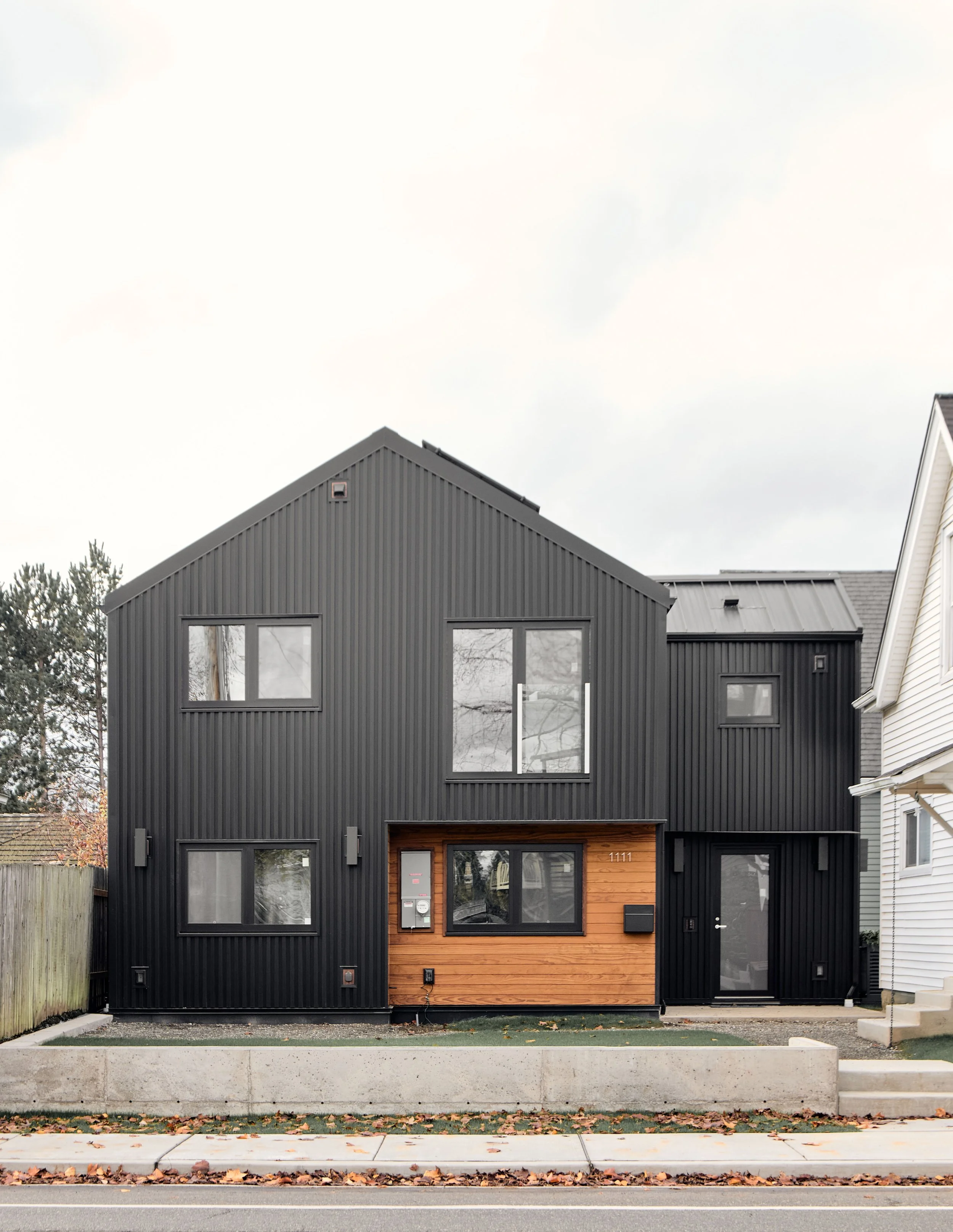

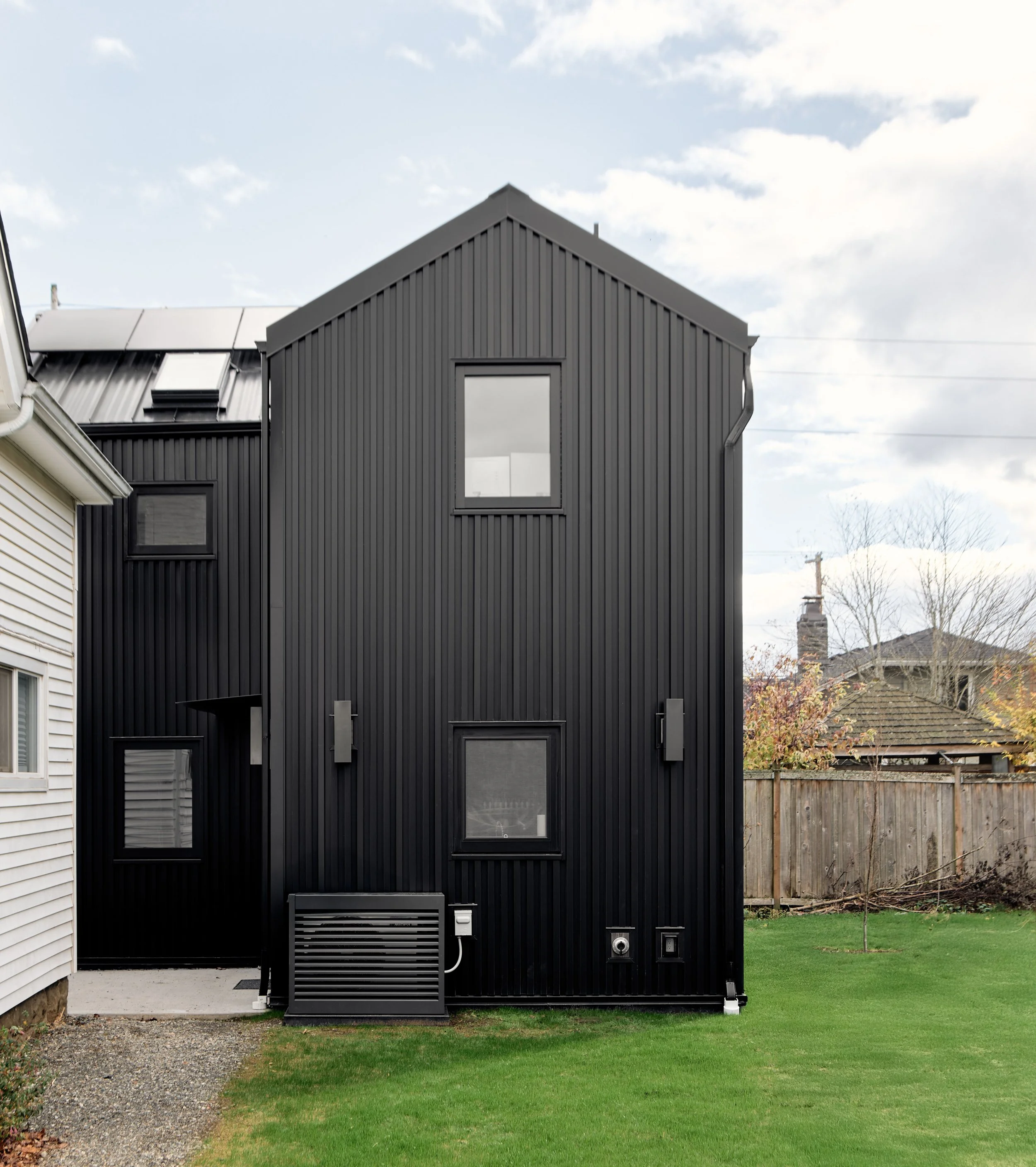

Custom DADU exterior by Fox Lake Builders, Bellingham WA — black standing-seam metal cladding, wood entry canopy.

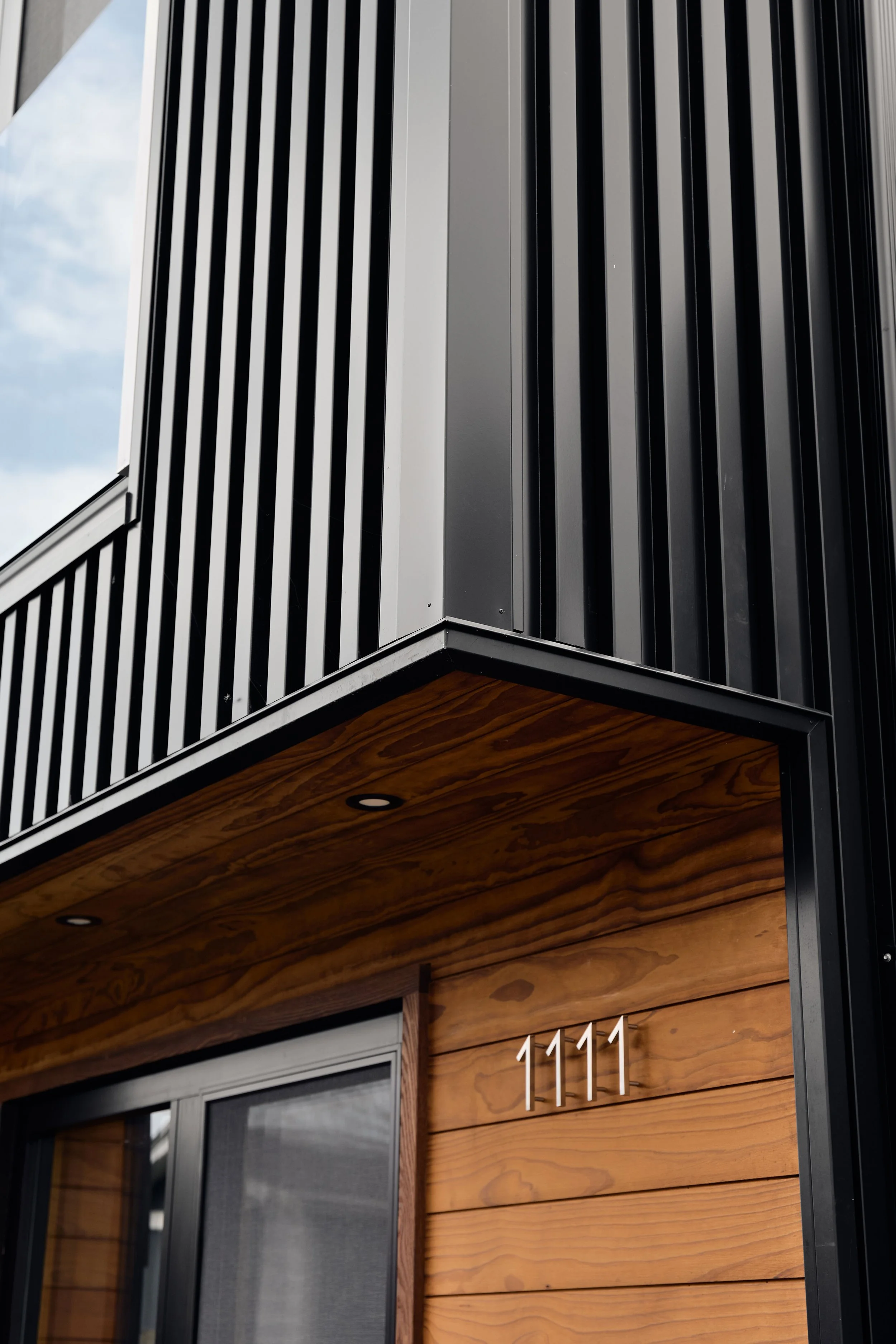

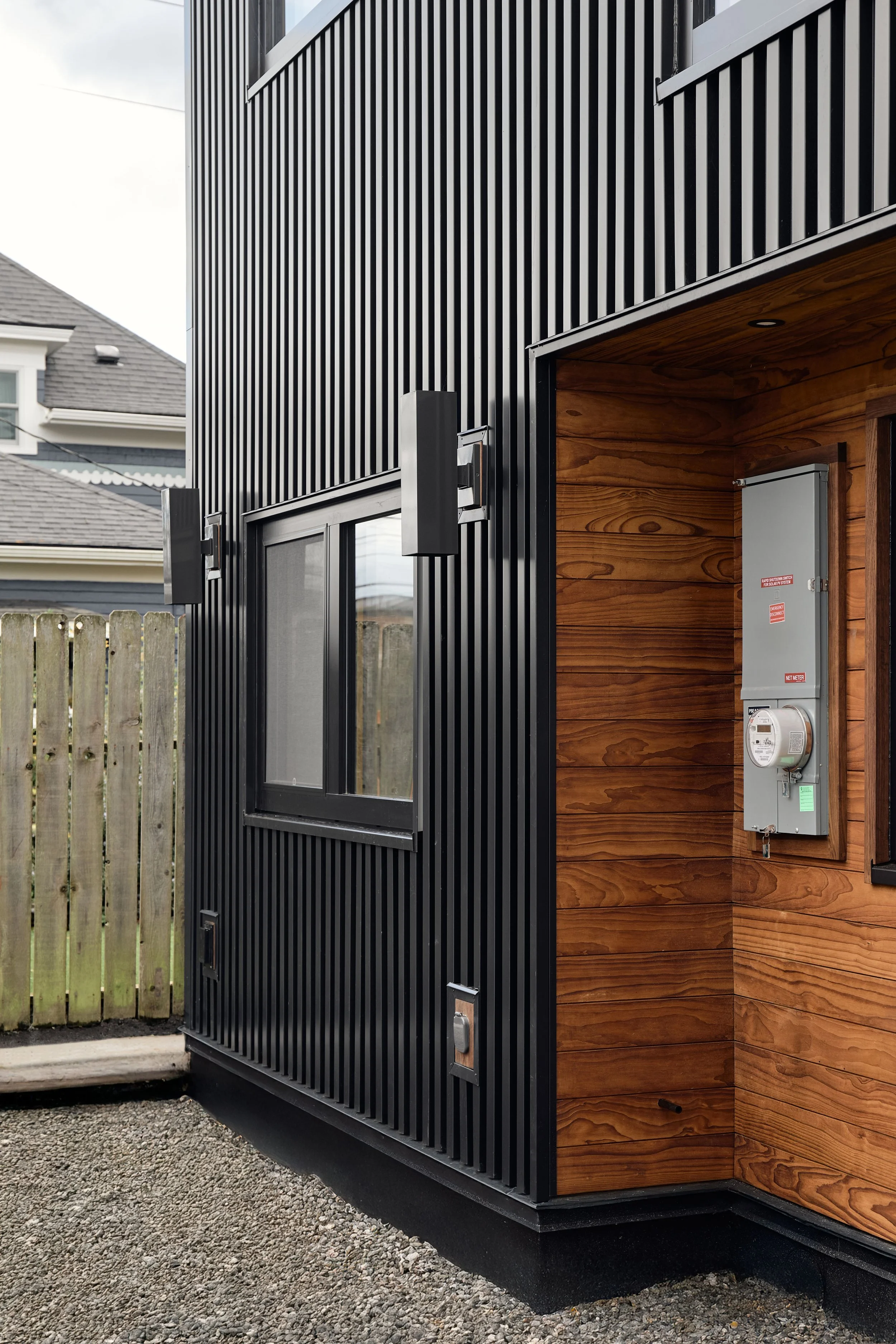

Lettered Streets, Bellingham WA — full-black standing-seam metal cladding, wood entry canopy, and brushed metal address numerals. Custom DADU by Fox Lake Builders, designed by Bundle Design Studio.

02 ● INTERIOR

High-End Finishes. Built to Last Decades

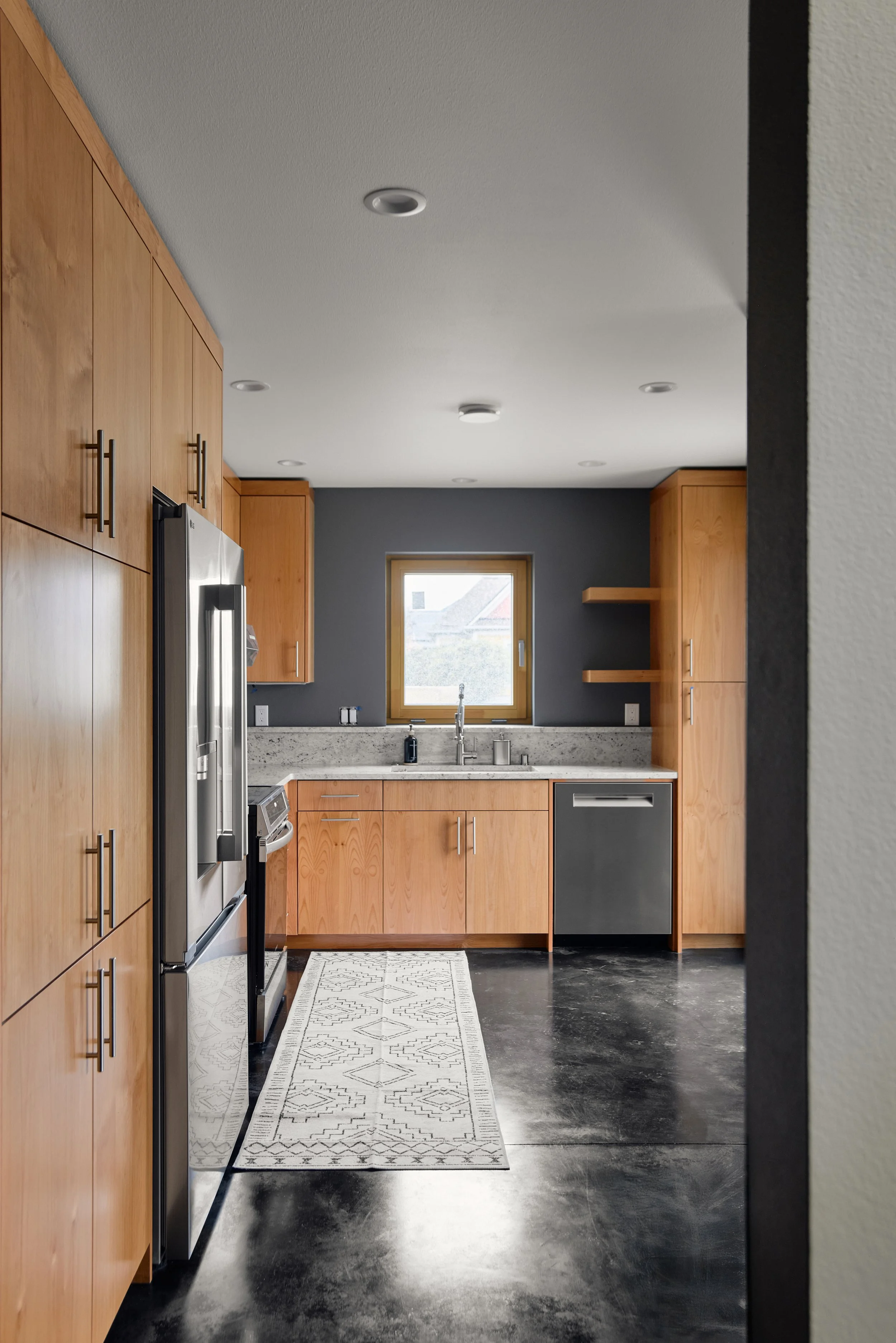

Kitchen in custom Bellingham DADU — cherry wood cabinetry, acid-stained polished concrete floors, stone countertops and backsplash. Built by Fox Lake Builders, Whatcom County.

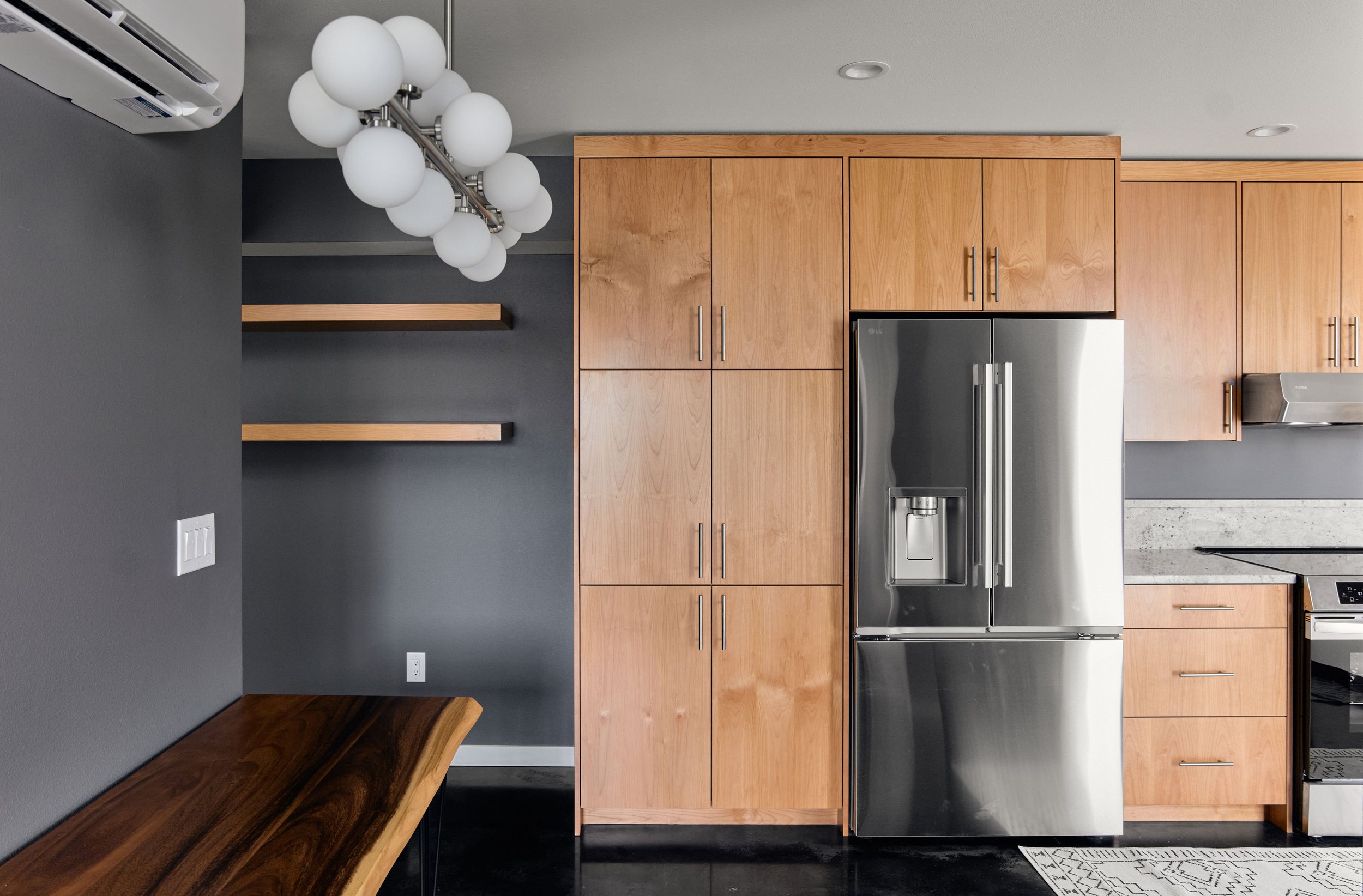

CUSTOM MILLWORK ● CONCRETE & WHITE OAK

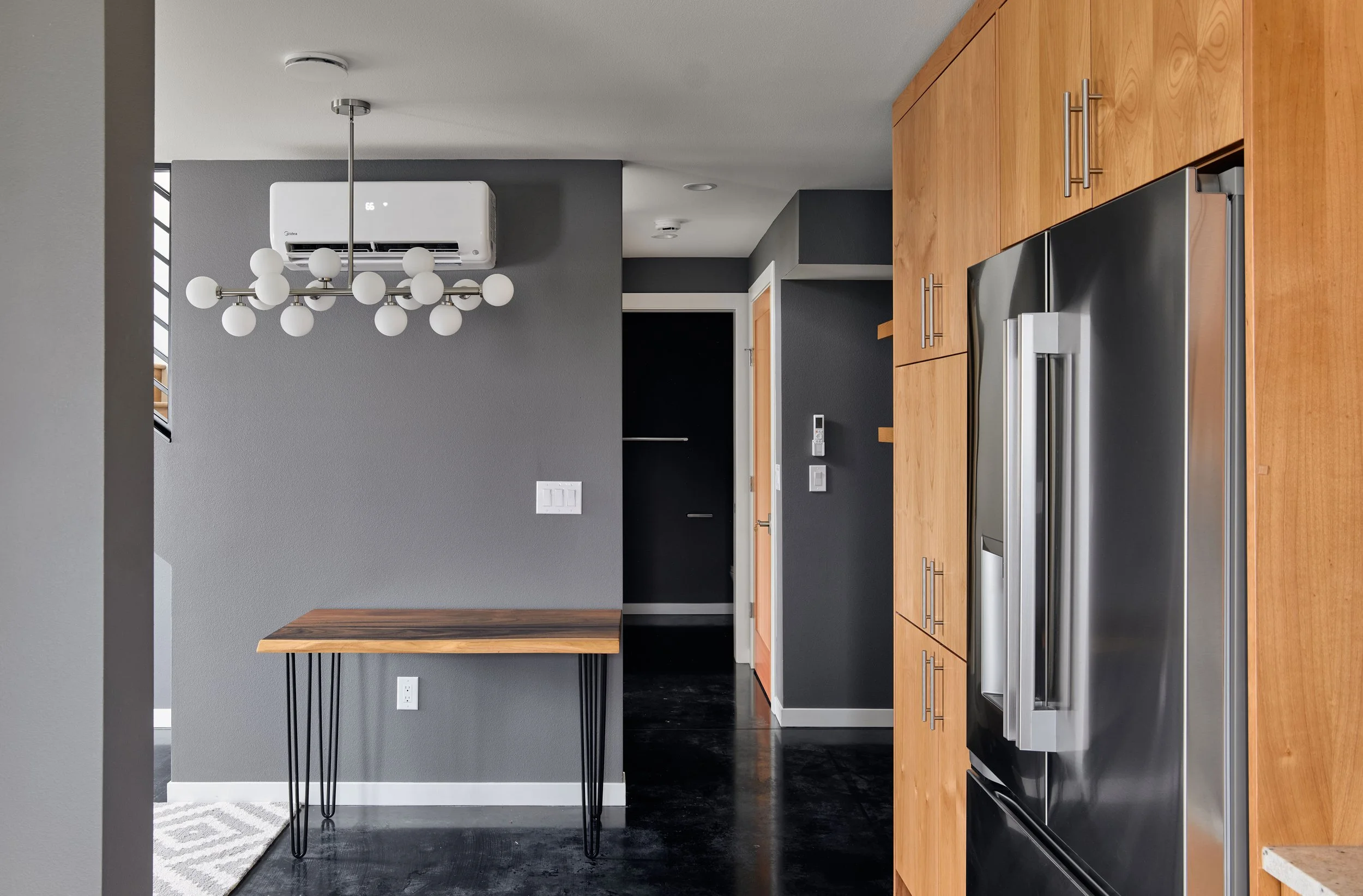

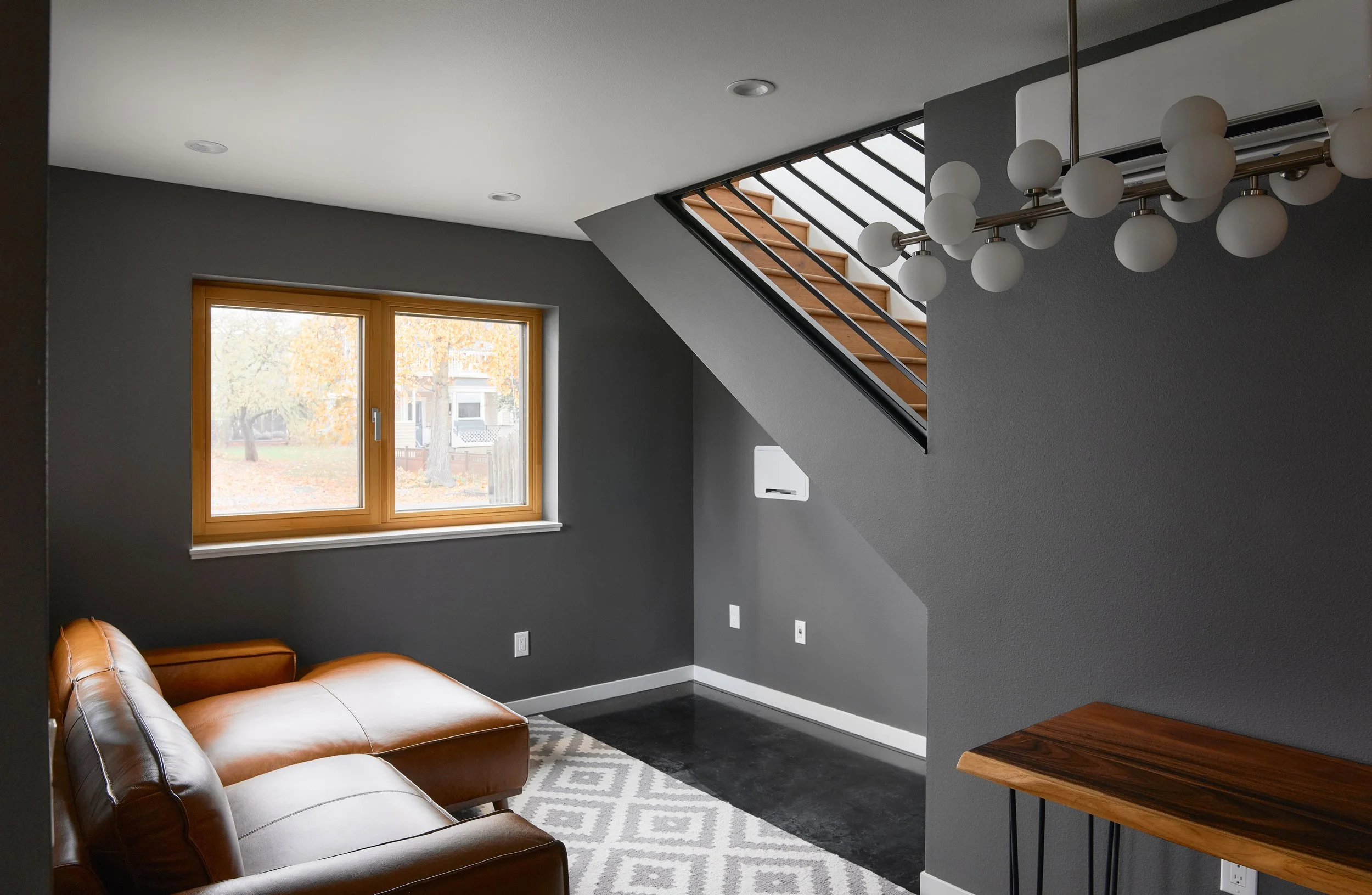

Dining nook with Midea mini-split head unit — passive house mechanical in a custom Bellingham DADU.

03 ● DETAILS

The Finishes That Separate Good from Great.

WHATCOM COUNTY CUSTOM HOME BUILDER

04 ● PERFORMANCE & SPECIFICATIONS

What High-Performance Home Building Looks Like in Whatcom County.

Full specifications for this Bellingham DADU — a benchmark for what Fox Lake Builders delivers on passive house and high-performance custom home projects across Whatcom County.

Air Tightness
0.4 ACH50 — Our Best Result To Date
Wall Assembly
3.5" Mineral Wool + Z-Girt Rainscreen
Wall R-Value
R-30 Average Effective
Ceiling / Roof
~R-63 Effective (Attic + Roof Assembly)
Air Barrier
Blueskin VP100 WRB — All Penetrations Sealed
Windows

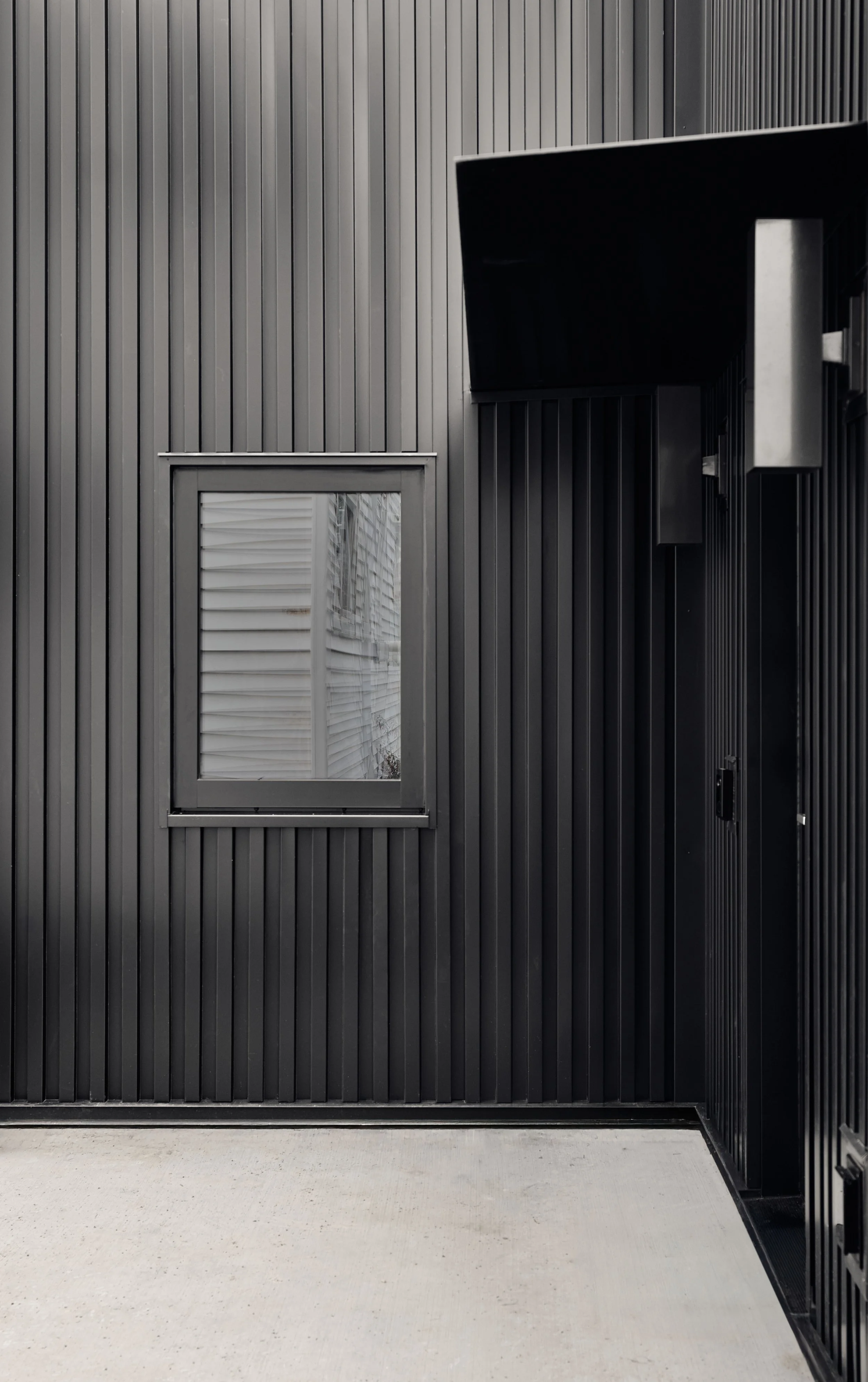

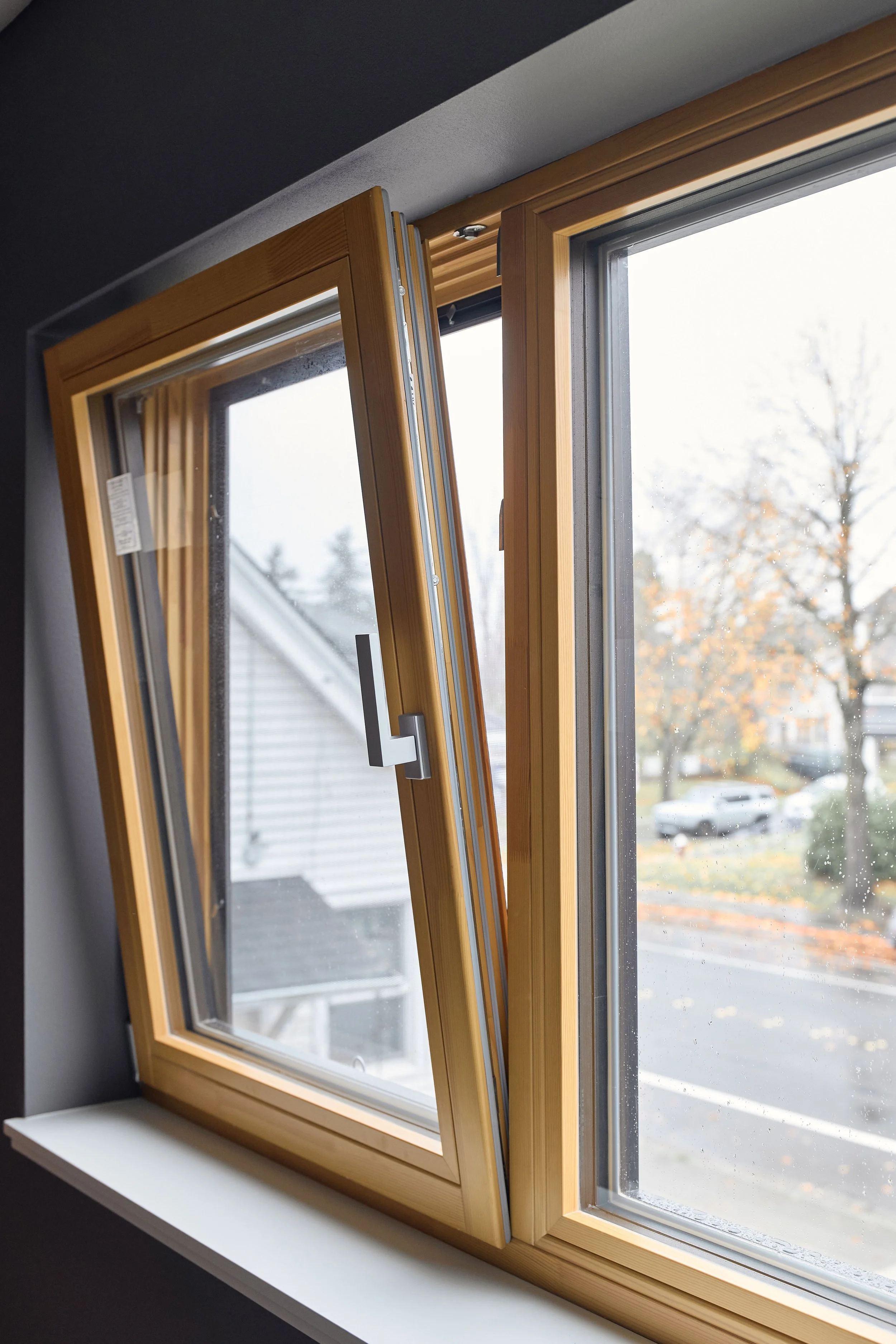

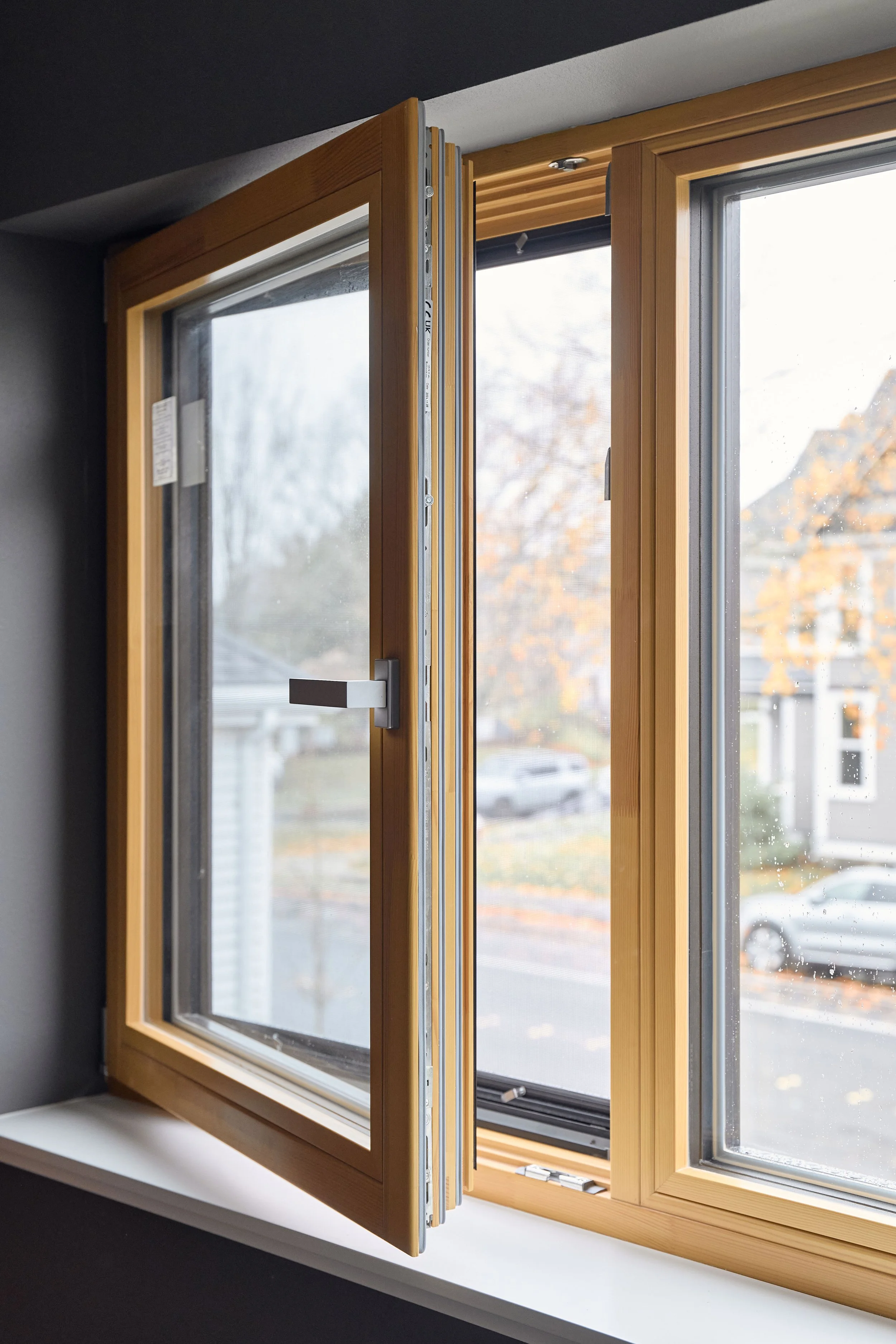

Vetta Tilt-and-Turn, Triple Pane, Wood Interior
Heating / Cooling
Mini-Split Heat Pump (Midea Units)
Hot Water
Heat Pump Water Heater
Ventilation
ERV / Balanced Mechanical Ventilation
Exterior Cladding
Standing-Seam Metal — Full Black
Roofing
Metal Standing Seam
Main Floor Flooring
Polished Concrete — Acid Stained
Upper Floor Flooring

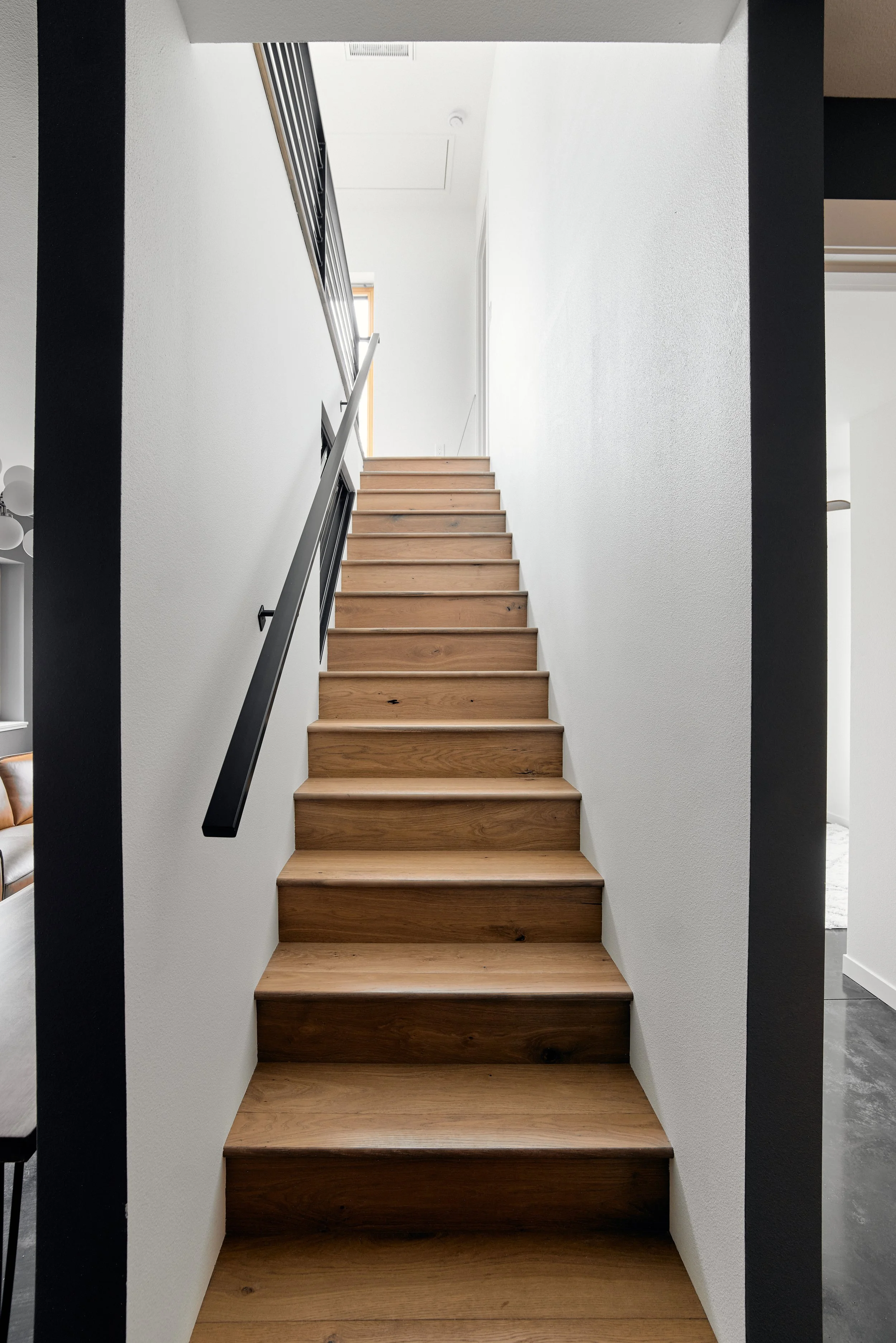

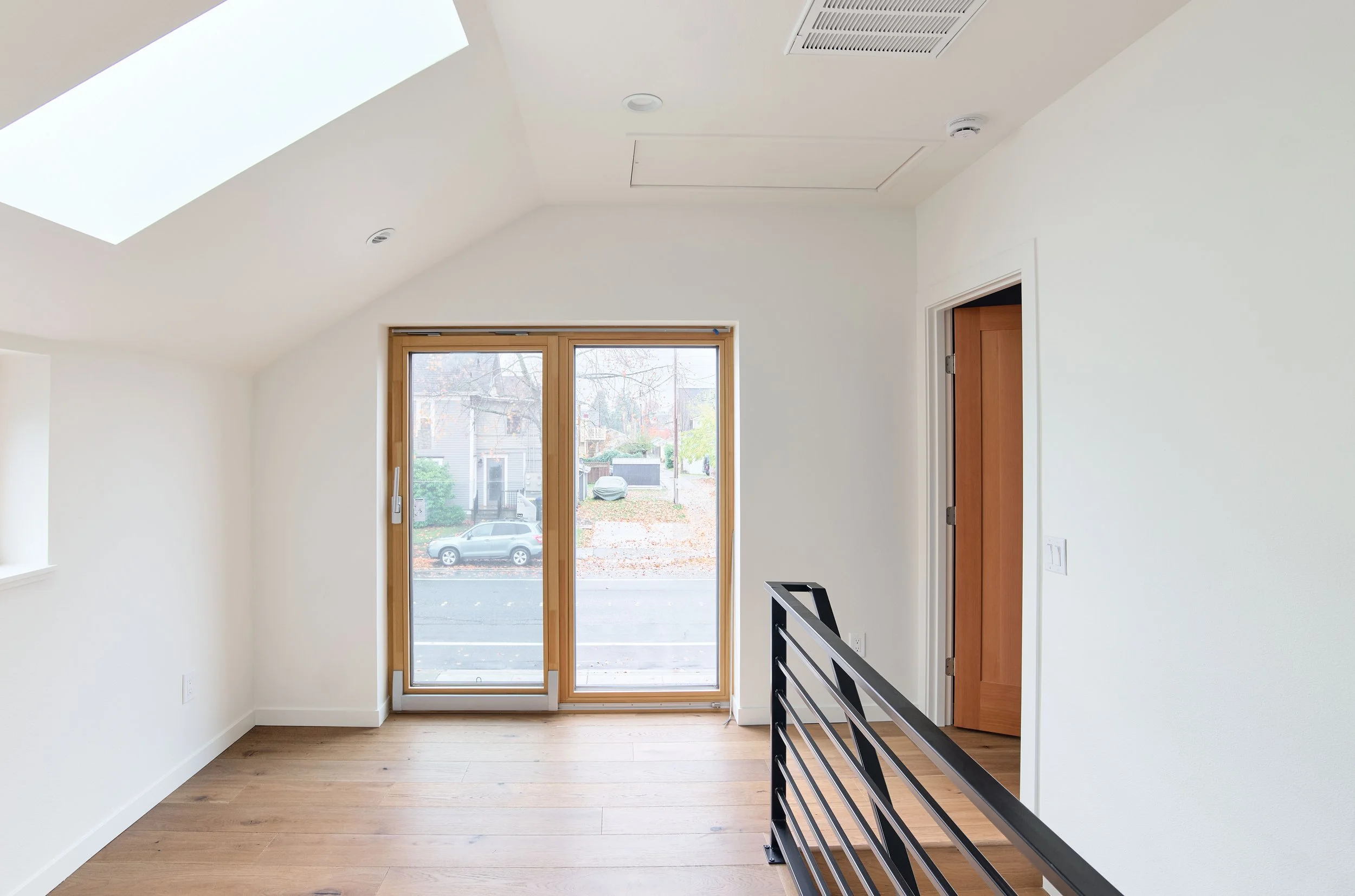

Wide-Plank White Oak
Interior Doors
Solid Core — Natural Wood Stain
Cabinetry
Cherry + Walnut — Custom Millwork
Countertops / Backsplash
Terrazzo-Look Porcelain
Bathrooms

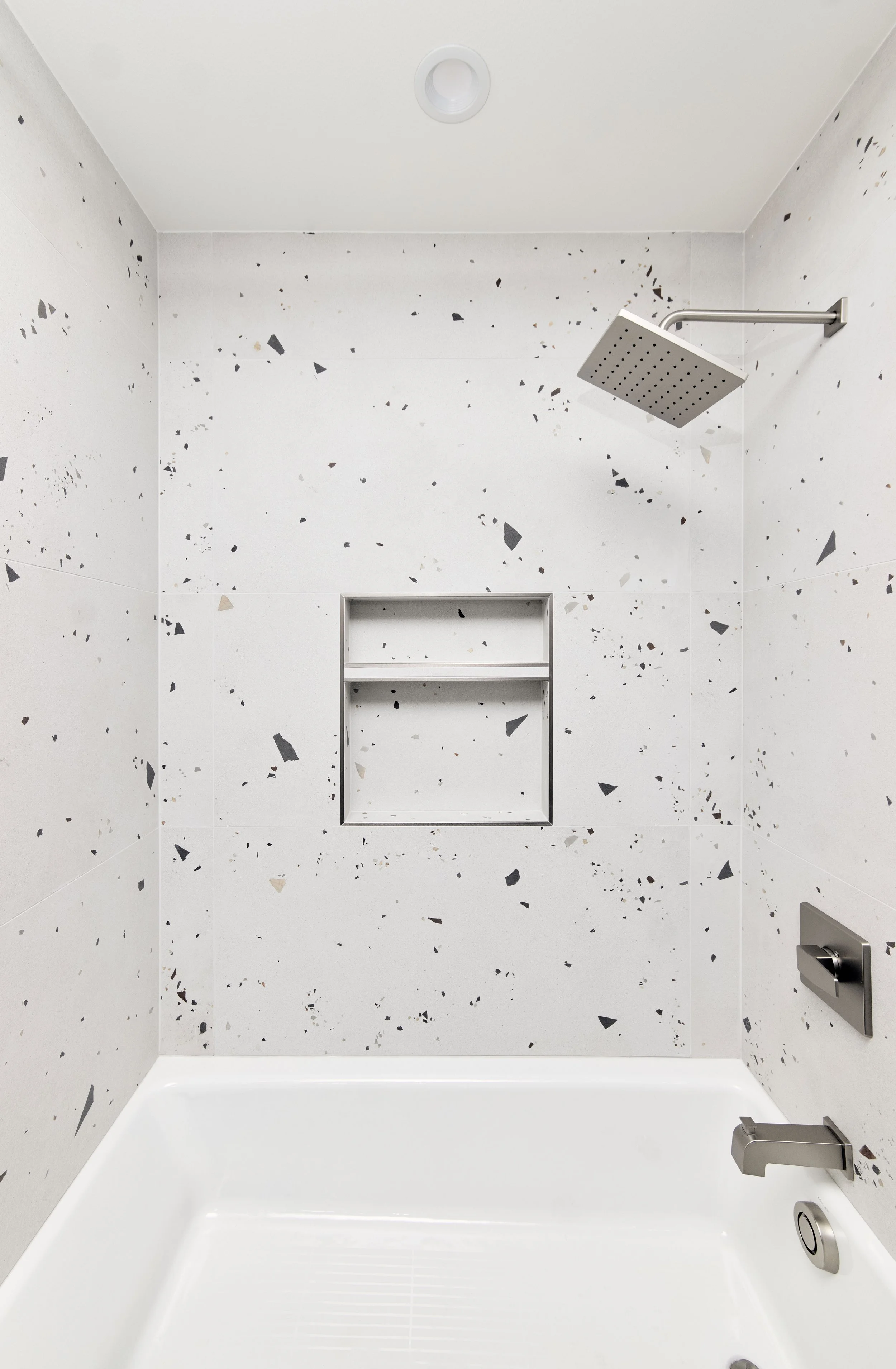

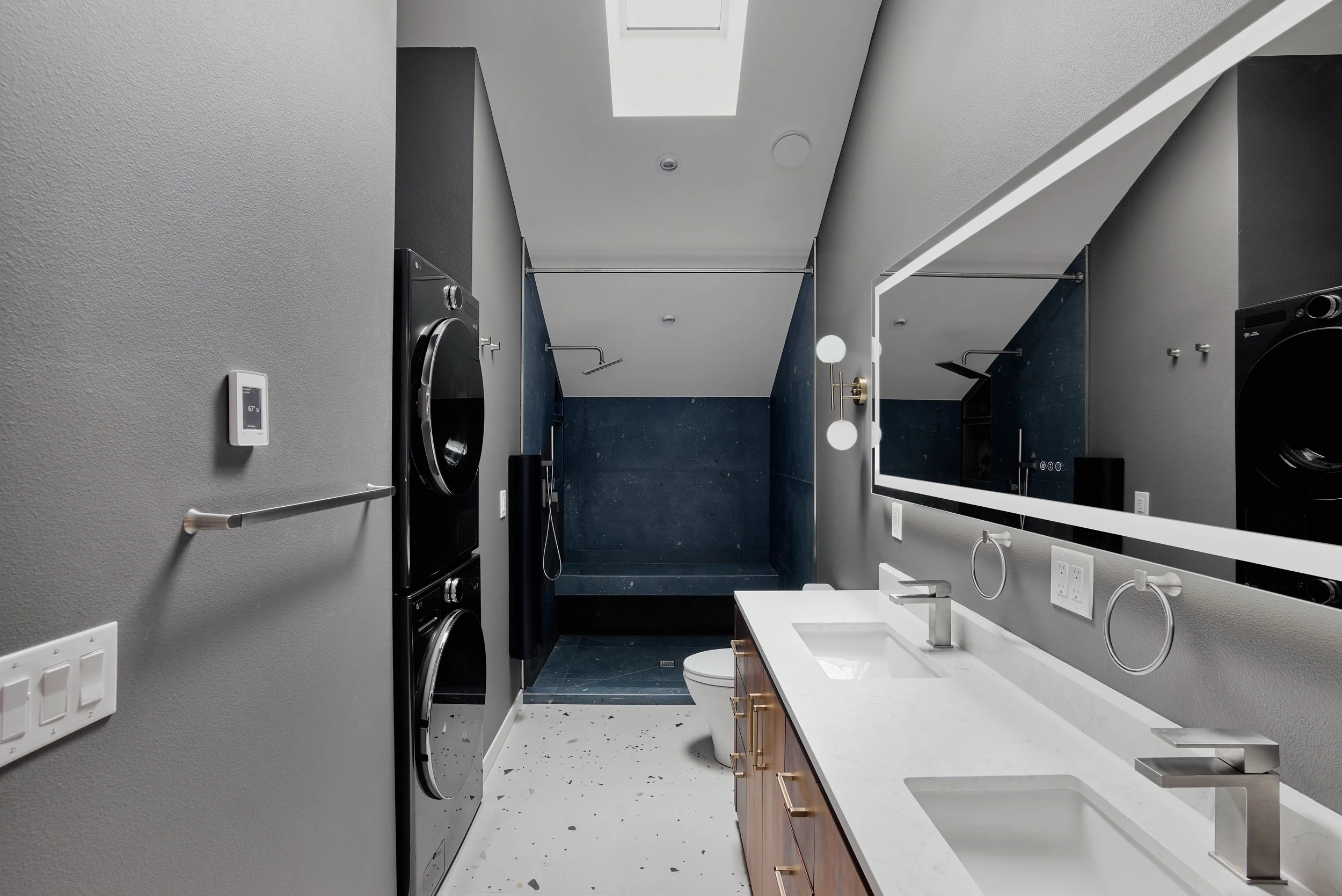

Terrazzo Tile, Frameless Shower, Skylit Primary
Landscaping
New Driveway, Retaining Wall, Garden & Paver Prep
Certification Standard
Passive House — Performance Targets Met
Finished Cost
$600 / Square Foot — High-End Finishes Throughout

Architect: Bundle Design Studio  ·  Builder: Fox Lake Builders, Bellingham WA
